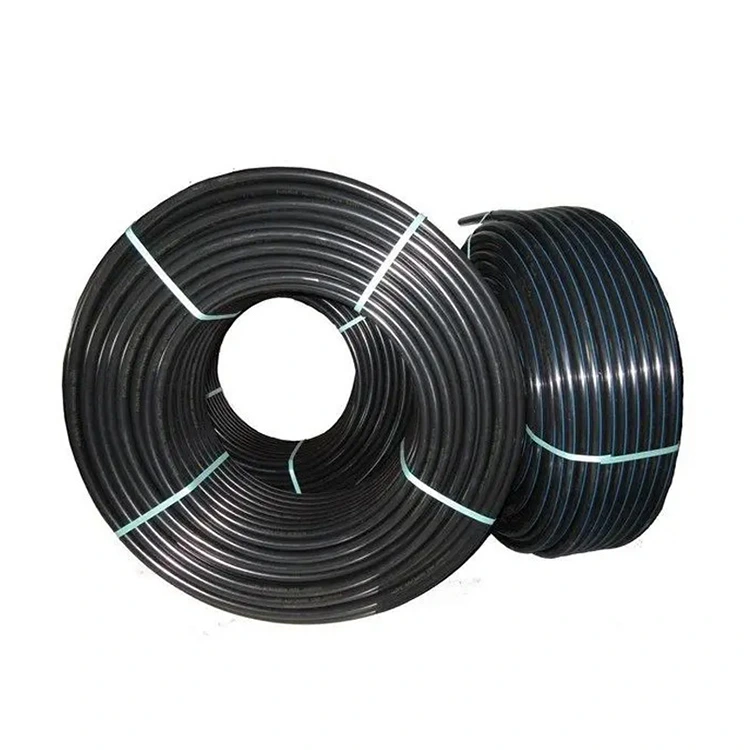

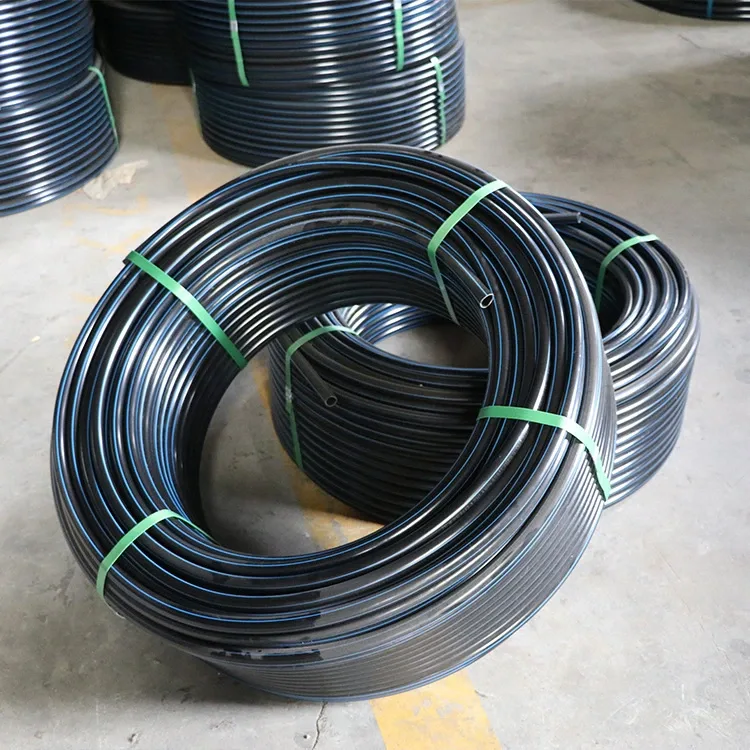

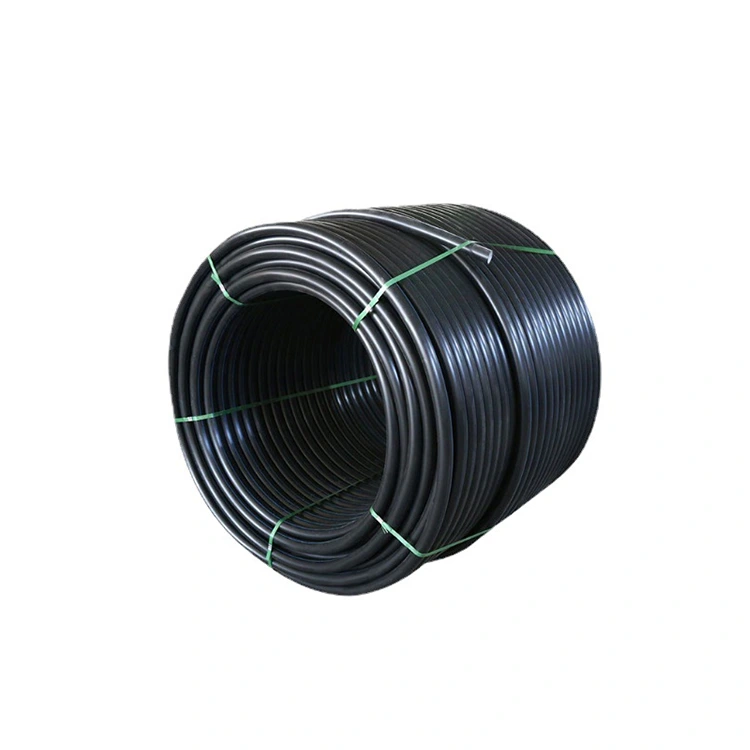

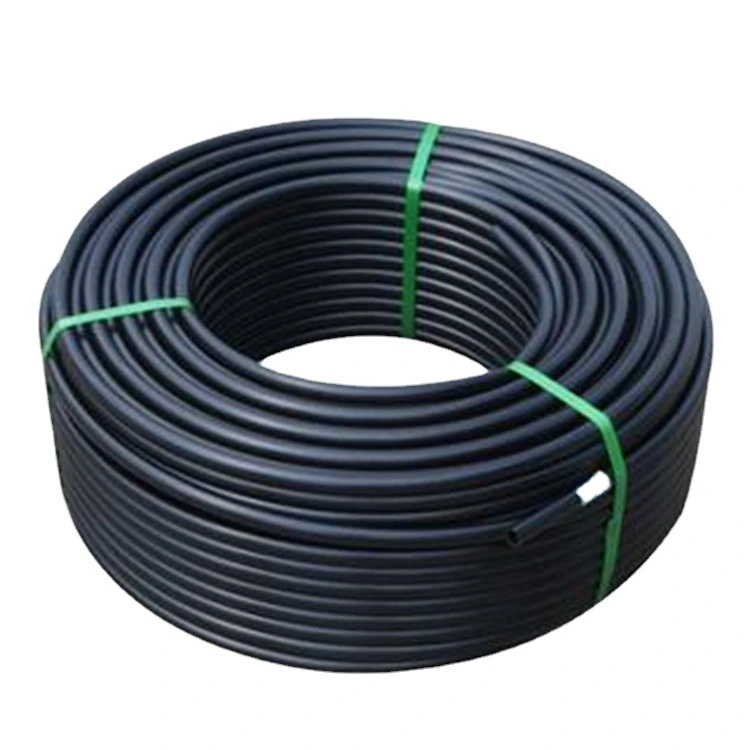

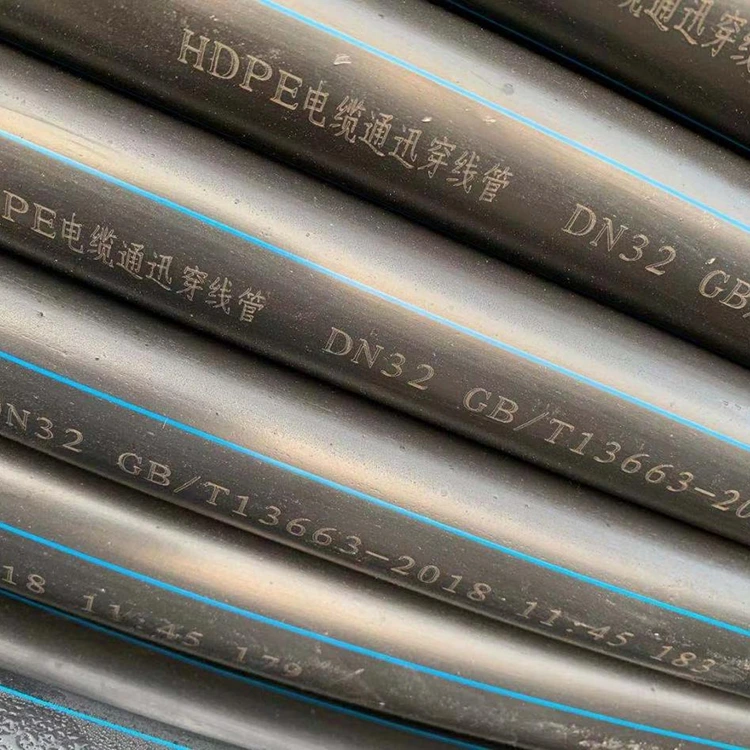

Underground HDPE Power Communication Conduit

East Boom® é uma fábrica de tubos de proteção de cabos HDPE na China, que produz dutos de cabos HDPE no atacado que atendem aos padrões internacionais ISO. Nossa vida útil durável de tubos de proteção de cabos HDPE é de mais de 50 anos. Envie-nos um e-mail agora para obter uma lista de preços e serviços OEM/ODM!

Enviar consulta

Descrição do produto

Our smooth-wall HDPE pipes protect power and telecom cables for decades. We make them by extruding high-grade polyethylene with built-in UV protection to prevent aging. Designed specifically for protecting power and communication cables,HDPE Cable Protection pipe demonstrates exceptional mechanical strength and corrosion resistance, making it ideal for cable laying in municipal engineering, communication networks, and power systems.

Feature And Application

Recurso:

Flexible and durable construction

Resists acids, alkalis, and salt corrosion

Smooth interior for easy cable installation

High tensile strength, resists crushing and twisting

Adapts to complex bends and terrain

Lightweight for easy handling

Supports quick fusion or socket connections

Withstands temperature variations and physical impacts

Provides EMI shielding

Environmentally friendly and recyclable

Aplicações:

Power cable protection

Fiber optic communication conduits

Thick-walled design enhances durability and extends service life.

Parameter (Specification)

PE Pipe for Power and Communication Use

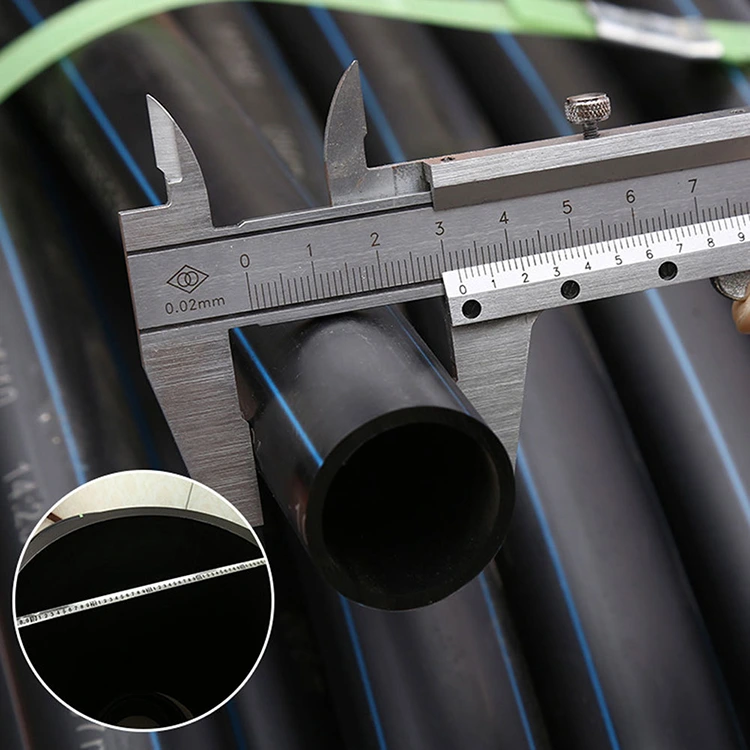

DE nominal (mm)	Espessura mínima da parede (mm)	Comprimento (m)
25	2	400m/rolo
32	2	300m/rolo
40	2.5	200m/rolo
50	3	200m/roll and 6-12m/bar
60	3.5	100m or 200m/roll and 6m or 12m/bar
63	3.5	100m or 200m/roll and 6m or 12m/bar
75	3	100m/roll and 6m or 12m/bar
90	3.5	100m/roll and 6m or 12m/bar
100	4	6m ou 12m/barra
110	4	6m ou 12m/barra
125	5	6m ou 12m/barra
150	5	6m ou 12m/barra
160	5	6m ou 12m/barra
167	8	6m ou 12m/barra
175	7	6m ou 12m/barra
180	7	6m ou 12m/barra
192	7	6m ou 12m/barra
200	6	6m ou 12m/barra
219	10	6m ou 12m/barra
225	10	6m ou 12m/barra
232	16	6m ou 12m/barra
250	9	6m ou 12m/barra
